170 metre office tower – Liebherr cranes involved in construction of “To‑Lyon”

02/08/22-FR-English-NL-footer

Tour de bureaux de 170 mètres – Les grues Liebherr participent à la construction de « To‑Lyon »

Liebherr lyon ec b ec h 01 96dpi 729

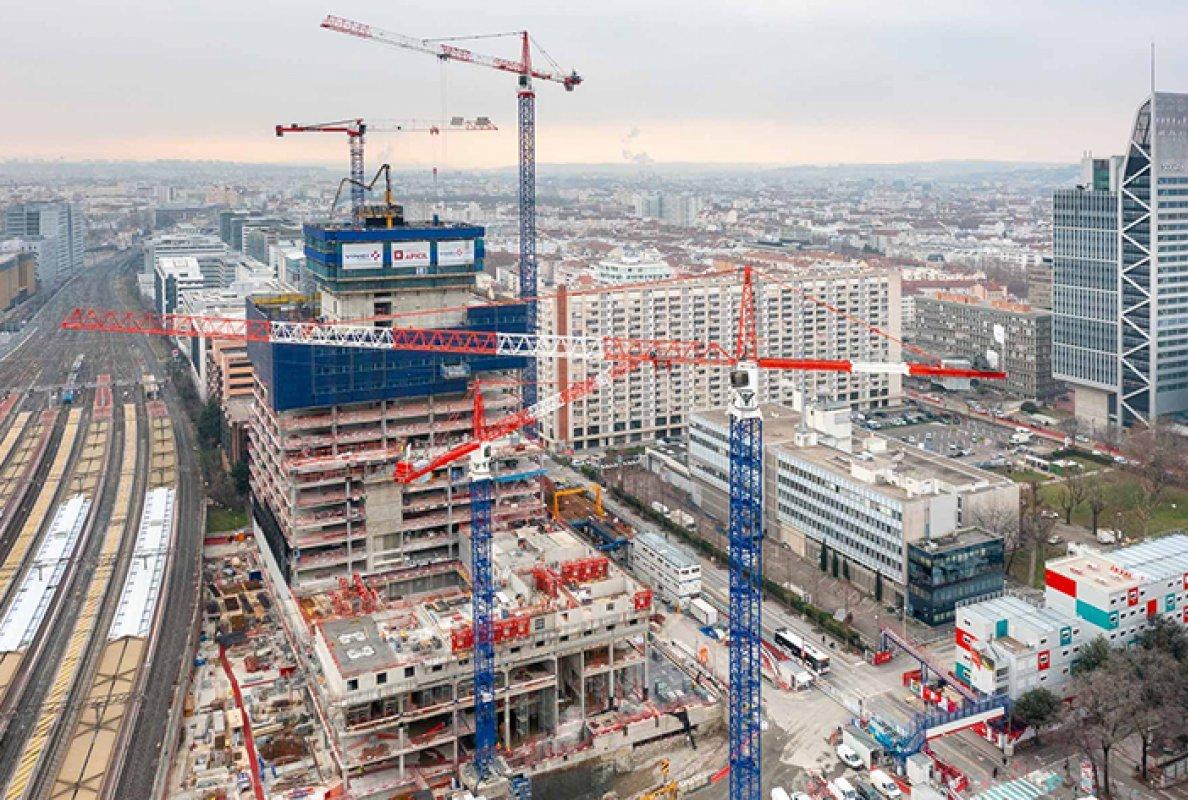

At times, four Liebherr cranes were operating simultaneously on the site to complete various buildings, including the “To-Lyon” tower. IMAGE SOURCE: Liebherr-Werk Biberach GmbH

Grues des séries EC-H et EC-B à Lyon, France, travaillant au développement d'un quartier urbain moderne

Liebherr fournit le concept parfait pour ancrer les grues afin d'accélérer le calendrier du chantier

Les grutiers et les techniciens de service se rendent confortablement sur leur lieu de travail dans l'ascenseur LiUP

Un bâtiment de 170 mètres, peu d'espace et des monte-charges lourds - quatre grues à tour Liebherr finies en peinture d'avertissement d'avions contribuent à réaménager le quartier de la Part-Dieu à Lyon, en France. Une capacité de levage élevée et un concept parfait pour l'ancrage des grues ont été les principaux points centraux de ce travail pour le client Vinci Construction France. Liebherr a développé des solutions sur mesure pour répondre à ces exigences.

Les grues utilisées pour le projet, situé juste à côté de la gare centrale de Lyon, sont les 420 EC-H 16, 280 EC-H 12, 280 EC-H 16 et 250 EC-B 12. Le bâtiment le plus marquant du redéveloppement de la Part-Dieu est le « To‑Lyon », un gratte-ciel d'une hauteur de 170 mètres. A terme, le bâtiment disposera d'une surface totale de 80 000 mètres carrés pour des bureaux, des commerces et un hôtel. De nouveaux bâtiments, plus d'espace pour la nature et une mobilité en réseau - ce ne sont là que quelques-unes des mesures que le quartier utilisera pour se rendre plus attractif pour les résidents et les visiteurs.
Adaptation précise de la tour et de la flèche aux conditions du site

La hauteur sous crochet et la longueur de flèche des grues à rotation par le haut ont été choisies de manière à ce que les machines puissent pivoter les unes sur les autres sans se causer de problèmes malgré le peu d'espace disponible. C'est exactement pour cela que les grues des séries ECB et EC‑H ont été développées, car la longueur de la flèche et la hauteur des tours peuvent être adaptées de manière flexible à la situation sur un chantier. Les flèches des quatre grues travaillant sur le site ont une longueur comprise entre 30 et 65 mètres. Leurs hauteurs sous crochet sont comprises entre 47 et 194 mètres.

Le 420 EC-H 16 atteindra une hauteur sous crochet finale de 194 mètres. Un système de pylônes stables et un concept sophistiqué d'haubanage au bâtiment rendent possible cette énorme hauteur sous crochet pour l'érection du « To-Lyon ». En effet, les systèmes de haubanage ont des longueurs différentes au fur et à mesure de l'avancement des travaux de construction. Au départ, des entretoises plus longues seront utilisées, puis des plus courtes. La raison en est que la grue devait être ancrée à un moment où la façade finale en béton n'était pas terminée. Cela a permis de monter la grue sans mettre en péril l'ensemble du calendrier du chantier.

Positionnement précis du béton et de l'acier

Liebherr lyon ec b ec h 03 96dpi 0dd

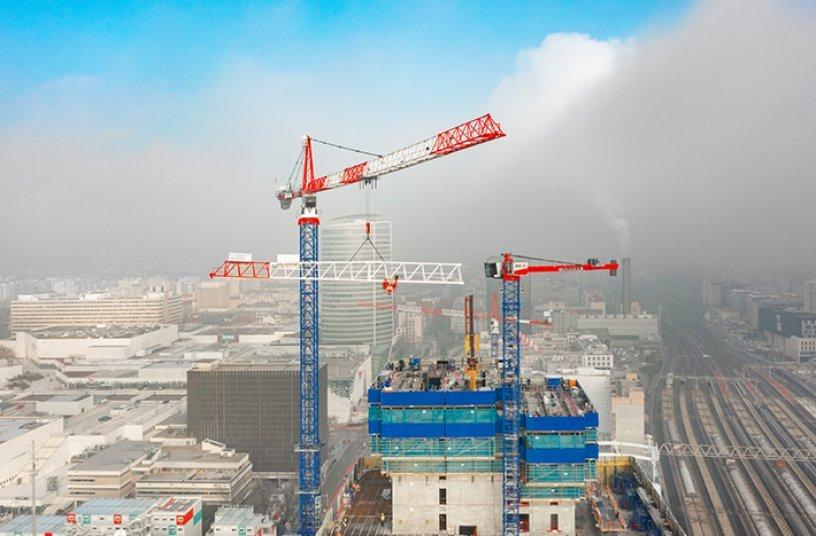

The 420 EC-H 16 has now dismantled the 250 EC-B 12 within a very short time so that the site can progress even further.
IMAGE SOURCE: Liebherr-Werk Biberach GmbH

Les grues sont principalement utilisées pour aider à installer des éléments en acier et pour des travaux de bétonnage. Certaines des charges étant hissées à plus de douze tonnes. Le système d'assistance Micromove peut être un réel plus pour ces palans. Micromove permet aux grutiers de positionner des charges lourdes avec une précision du bout des doigts et n'est qu'un des nombreux systèmes d'assistance disponibles. Litronic, l'assistant intelligent de Liebherr, est conçu pour soutenir les grutiers dans leur travail et également augmenter la capacité de manutention, la fiabilité et la sécurité.

Le 420 EC-H 16 a maintenant démantelé le 250 EC-B 12 en très peu de temps pour que le chantier puisse encore avancer. Le 420 EC-H 16 a maintenant démantelé le 250 EC-B 12 en très peu de temps pour que le chantier puisse encore avancer.

Toutes les grues du site français sont équipées de l'élévateur pour grutier LiUP. L'élévateur pour grutier LiUP de Liebherr est conçu pour transporter deux personnes ou une charge utile de 200 kilogrammes. Le grutier accède à son poste de travail rapidement et en toute sécurité par simple pression d'un bouton. Cela signifie également que les ingénieurs de montage n'ont plus à faire face à une ascension énergivore et chronophage. L'ascenseur LiUP est adapté aux systèmes de tour Liebherr et ne nécessite qu'une seule installation. Les rails peuvent être laissés dans le système de tour pendant les processus de montage et de démontage.

Le chantier est maintenant tellement avancé que le 250 EC-B 12 a été démantelé. La 420 EC-H 16 a participé à la réalisation de ces travaux. Grâce à sa conception facile à monter, la grue EC-B a été démontée en une seule journée. Les raccords rapides LiConnect et la tête compacte avec la plate-forme pivotante, la cabine et l'armoire de distribution garantissent que les grues peuvent être démontées et montées rapidement et en toute sécurité. Un démontage en douceur a été utile dans ce projet particulier car les grues restantes ont pu redémarrer leur travail rapidement. Le « To‑Lyon » devrait être achevé au printemps 2023.
NJC.© Info Liebherr-Werk Biberach GmbH

----------------------------------------------------------------------------------------------------------------
