Tunnelling improved with ZK 750-Diameter Centrifuge Skid-Mounted System

30/11/22-FR-English-NL-footer

Tunnellisation améliorée avec le système monté sur skid de centrifugeuse de diamètre 750 ZK

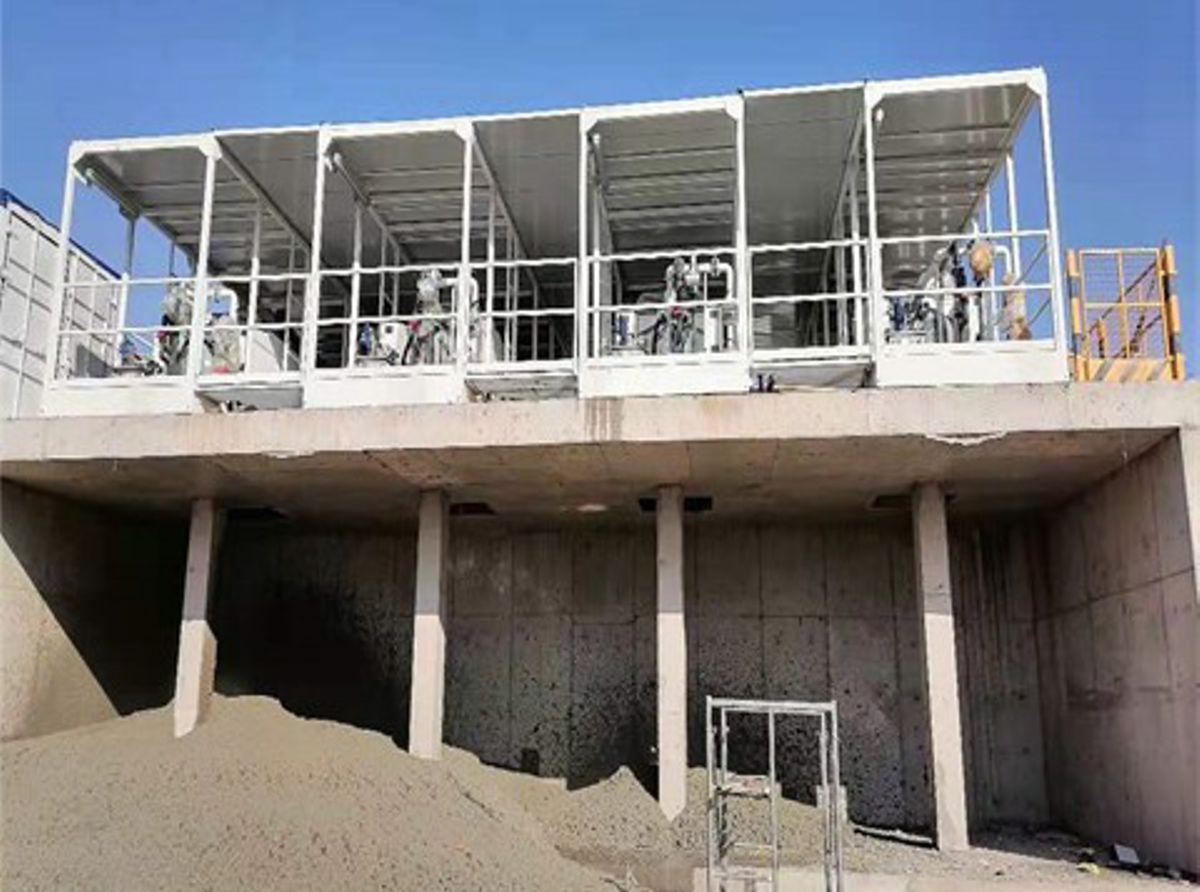

Zk 1Image- ZK SEPARATION

ZK a fourni quatre ensembles de systèmes de centrifugation LW750x3200B pour le lisier d'ingénierie à une entreprise de machines de construction, ce qui a assuré le bon déroulement du projet, réduit efficacement la pollution de l'environnement et réduit les coûts.

Dans le processus de construction du tunnel, une grande quantité de boue est produite. Ces boues ont les caractéristiques d'un taux élevé de terre et d'une forte teneur en eau, ce qui produira inévitablement des déversements et de la poussière pendant le transport, polluera l'environnement routier urbain, affectera gravement l'environnement de construction sur le site, et même entravera la construction et affectera le progrès. du projet. Le nettoyage de la boue nécessite une grande quantité d'eau propre et sa boue contient du sable et du gravier recyclables, ce qui entraînera un énorme gaspillage de ressources s'il est traité comme un déchet.

Par conséquent, l'équipe du projet a choisi d'utiliser des décanteurs centrifuges ZK pour traiter la boue du projet. Ces boues seront pompées à la surface, puis entreront dans la station de séparation des boues, où elles seront tamisées et filtrées, puis traitées dans le réservoir de sédimentation. La centrifugeuse traite principalement les boues de déchets dans la partie inférieure du réservoir de sédimentation.

Le projet est équipé de quatre systèmes montés sur skid de centrifugeuse 750, de deux systèmes de dosage Y8000 et de pompes d'alimentation. Les pompes d'alimentation pompent la boue de déchets dans les centrifugeuses. Le dispositif de dosage distribue des produits chimiques et les pompe vers la conduite d'alimentation à travers la pompe doseuse pour floculer et séparer le matériau.
Système de skid de centrifugeuse

Le système de skid de centrifugeuse est principalement composé d'une centrifugeuse biphasée LW750, d'une armoire de commande, d'une station d'huile de lubrification, d'un débitmètre d'alimentation, d'un débitmètre de dosage, d'un pipeline d'alimentation, d'un pipeline de dosage, d'un corps de skid, etc.
Système de skid de dosage

Le système de skid de dosage est principalement composé d'un dispositif de dosage Y8000, d'une armoire de commande, d'un dispositif de dilution, d'une pompe doseuse, d'une canalisation de dosage, d'un corps de skid, etc.

Le dispositif de dosage Y8000 peut réaliser une distribution automatique et un transport quantitatif automatique de poudre
Dispositif de préparation de floculant automatique Y8000

L'appareil est composé de trois parties. La première partie est un dispositif d'alimentation en poudre sèche, comprenant un bac de stockage de poudre sèche, un dispositif d'alimentation en poudre sèche, un dispositif d'étanchéité à commande électrique, un interrupteur de niveau, un vibrateur, un mélangeur ; la deuxième partie est un dispositif d'alimentation par injection d'eau, comprenant un réducteur de pression, une vanne d'arrêt, une électrovanne, un débitmètre électromagnétique ; la troisième partie est le réservoir de stockage (type à trois boîtes), le dispositif d'agitation, le contrôleur de niveau de liquide et les pièces de vanne de canalisation, etc. Le floculant polymère peut être ajouté au mélange sous forme de poudre ou de liquide.

À l'heure actuelle, le projet est terminé et l'équipement a été transféré au projet suivant. Au début du processus d'utilisation, en raison de nombreux facteurs tels que le changement des caractéristiques des matériaux, les problèmes d'adaptation des agents, le volume d'eau, etc., la capacité de traitement ne pouvait pas augmenter. Plus tard, après rectification, la capacité de traitement maximale peut atteindre 40 mètres carrés par heure, la sortie de liquide est propre et l'effet de traitement peut suivre l'avancement du projet.
NJC.© Info ZK SEPARATION

--------------------------------------------------------------------------------------------------------------------

30/11/22-English

Tunnelling improved with ZK 750-Diameter Centrifuge Skid-Mounted System

Zk 1Image- ZK SEPARATION

ZK supplied four sets of LW750x3200B centrifuge systems for engineering slurry to a construction machinery company, which ensured the smooth progress of the project, effectively reduced pollution to the environment, and saved costs.

In the tunnel construction process, a large amount of mud is produced. These slurries have the characteristics of high soil-containing rate and high-water content, which will inevitably produce spillage and dust during transportation, pollute the urban road environment, seriously affect the construction environment on site, and even hinder the construction and affect the progress of the project. Cleaning mud requires a large amount of clean water, and its mud contains recyclable sand and gravel, which will cause a huge waste of resources if treated as waste.

Therefore, the project team chose to use ZK decanter centrifuges to treat the project slurry. These slurries will be pumped to the surface and then enter the slurry separation station, where they will be screened and filtered, then processed into the sedimentation tank. The centrifuge mainly treats the waste slurry in the lower part of the sedimentation tank.

The project is equipped with four 750 centrifuge skid-mounted systems, two Y8000 dosing systems, and feed pumps. The feed pumps pump the waste slurry into the centrifuges. The dosing device dispenses chemicals and pumps them to the feed line through the dosing pump to flocculate and separate the material.
Centrifuge Skid System

Centrifuge skid system is mainly composed of LW750 two-phase centrifuge, control cabinet, lubricating oil station, feed flow meter, dosing flow meter, feed pipeline, dosing pipeline, skid body, and so on.
Dosing Skid System

The dosing skid system is mainly composed of a Y8000 Dosing device, control cabinet, dilution device, dosing pump, dosing pipeline, skid body, etc.

Y8000 dosing device can realize automatic dispensing and automatic quantitative conveying of powder
Y8000 Automatic Flocculant Preparation Device

The device is composed of three parts. The first part is dry powder feeding device, including dry powder storage bin, dry powder feeding device, electric control sealing device, level switch, vibrator, mixer; the second part is water injection feeding device, including pressure reducing valve, shut-off valve, solenoid valve, electromagnetic flow meter; the third part is the storage tank (three-box type), stirring device, liquid level controller and pipeline valve parts, etc. The polymer flocculant can be put into the mix as a powder or liquid.

At present, the project has been finished and the equipment has been transferred to the next project. In the early use process, due to many factors such as the change of material characteristics, agent matching problems, water volume, etc., the treatment capacity could not go up. Later, after rectification, the maximum treatment capacity can reach 40 square meters per hour, the liquid output is clean, and the treatment effect can meet the progress of the project.
NJC.© Info ZK SEPARATION

-----------------------------------------------------------------------------------------------------------------------

30/11/22-NL

Tunneling verbeterd met ZK 750-Diameter Centrifuge Skid-Mounted System

Zk 1Image- ZK SEPARATION

ZK leverde vier sets LW750x3200B-centrifugesystemen voor engineeringslurry aan een bouwmachinebedrijf, wat zorgde voor een soepel verloop van het project, effectief verminderde vervuiling van het milieu en kosten bespaarde.

Bij de bouw van tunnels wordt een grote hoeveelheid modder geproduceerd. Deze slurries hebben de kenmerken van een hoge bodembevattende snelheid en een hoog watergehalte, die tijdens het transport onvermijdelijk morsen en stof zullen veroorzaken, de stedelijke wegomgeving zullen vervuilen, de bouwomgeving ter plaatse ernstig zullen aantasten en zelfs de constructie zullen belemmeren en de voortgang zullen beïnvloeden van het project. Voor het reinigen van modder is een grote hoeveelheid schoon water nodig, en de modder bevat recyclebaar zand en grind, wat een enorme verspilling van hulpbronnen zal veroorzaken als het als afval wordt behandeld.

Daarom koos het projectteam ervoor om ZK-decanteercentrifuges te gebruiken om de projectslurrie te behandelen. Deze slib wordt naar de oppervlakte gepompt en komt dan in het slibscheidingsstation, waar ze wordt gezeefd en gefilterd en vervolgens verwerkt in de bezinktank. De centrifuge behandelt voornamelijk de afvalslurrie in het onderste deel van de bezinktank.

Het project is uitgerust met vier 750 centrifuge skid-mounted systemen, twee Y8000 doseersystemen en voedingspompen. De voedingspompen pompen de afvalslurrie in de centrifuges. Het doseerapparaat geeft chemicaliën af en pompt deze via de doseerpomp naar de toevoerleiding om het materiaal uit te vlokken en te scheiden.
Centrifuge Skid-systeem

Centrifuge-skidsysteem bestaat voornamelijk uit LW750 tweefasige centrifuge, schakelkast, smeeroliestation, toevoerstroommeter, doseerstroommeter, toevoerpijpleiding, doseerpijpleiding, skidbody, enzovoort.
Dosering Skid-systeem

Het doseerskidsysteem bestaat hoofdzakelijk uit een Y8000-doseerapparaat, schakelkast, verdunningsapparaat, doseerpomp, doseerpijpleiding, skidbody, enz.

Y8000-doseerapparaat kan automatische dosering en automatisch kwantitatief transport van poeder realiseren
Y8000 Automatisch vlokmiddelvoorbereidingsapparaat

Het apparaat bestaat uit drie delen. Het eerste deel is een toevoerapparaat voor droog poeder, inclusief een opslagbak voor droog poeder, een toevoerapparaat voor droog poeder, een elektrisch besturingsafdichtingsapparaat, niveauschakelaar, vibrator, mixer; het tweede deel is een voedingsapparaat voor waterinjectie, inclusief drukreduceerventiel, afsluiter, magneetventiel, elektromagnetische debietmeter; het derde deel is de opslagtank (type met drie dozen), het roerapparaat, de vloeistofniveauregelaar en onderdelen van de pijpleidingklep, enz. Het polymeervlokmiddel kan als poeder of vloeistof in het mengsel worden gedaan.

Op dit moment is het project afgerond en is de apparatuur overgedragen aan het volgende project. In het vroege gebruiksproces kon de behandelingscapaciteit vanwege vele factoren, zoals de verandering van materiaaleigenschappen, problemen met het matchen van middelen, watervolume, enz. Niet omhoog gaan. Later, na rectificatie, kan de maximale behandelingscapaciteit 40 vierkante meter per uur bereiken, is de vloeistofuitvoer schoon en kan het behandelingseffect voldoen aan de voortgang van het project.
NJC.© Info ZK SEPARATION

--------------------------------------------------------------------------------------------------------------------
